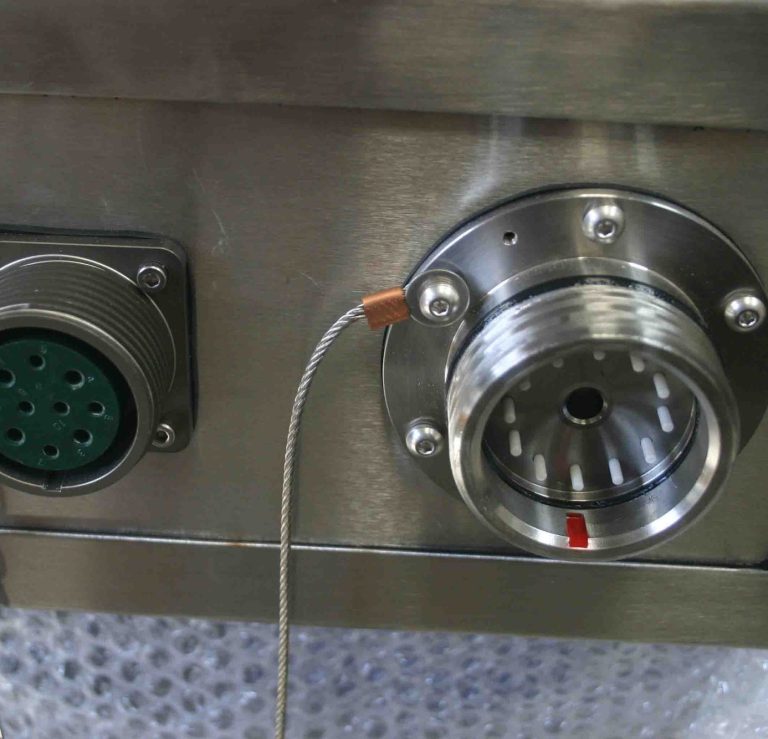

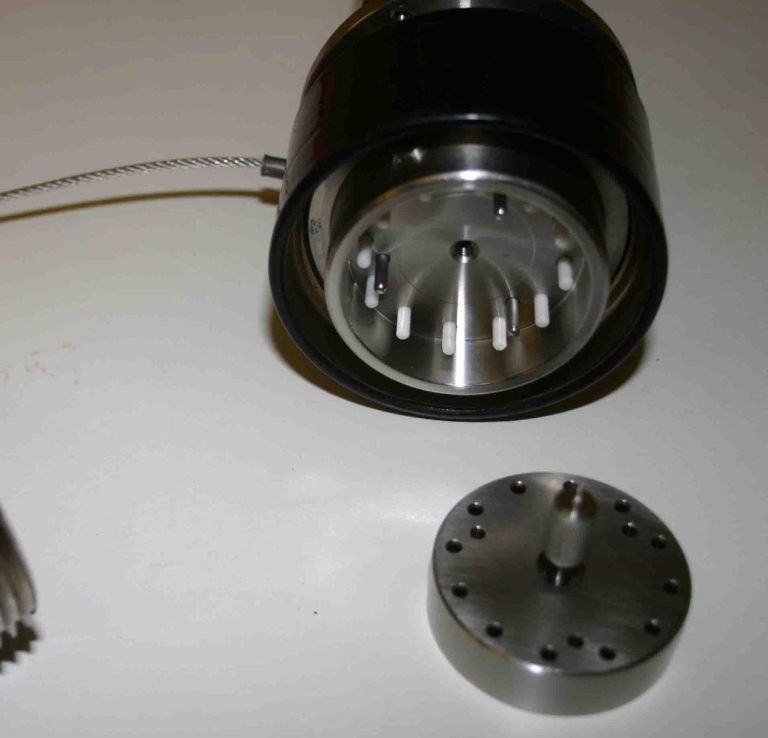

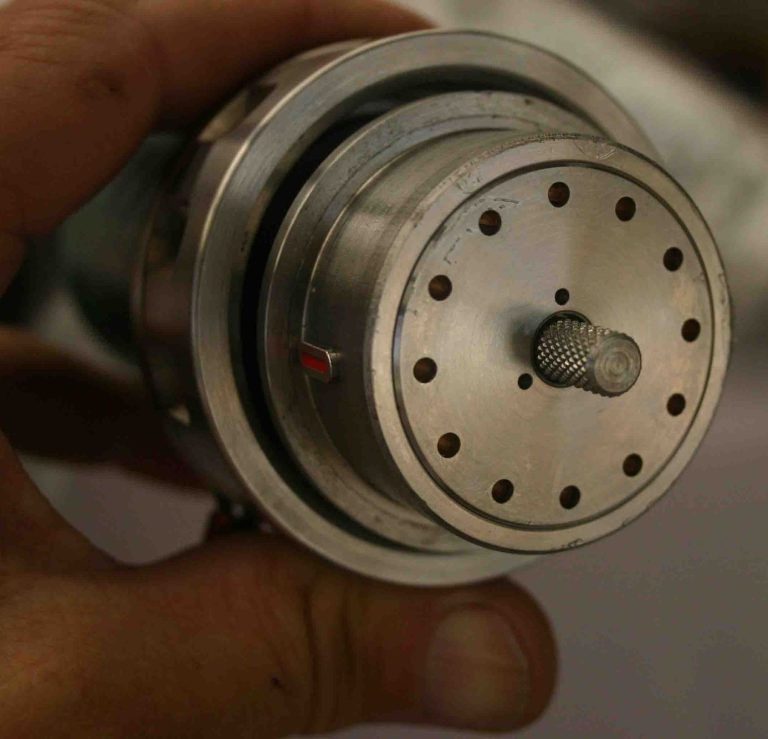

The Offshore Optics 12 way connector is a harsh environment 12 fibre multimode & singlemode. It was designed specifically for use on FPSO turrets but is suitable for any marine or corrosive environment, also installed on flotels. It is available as Male or Female and flange or free mounted. The connector consists of a 316 grade stainless steel body with blind cap. Male connector dust caps are also made from 316 Stainless Steel , and are available with a hard rubber bump cap to prevent impact damage.

Covered with multiple layers of chemical and fire resistant shrink down to prevent ingress and increase rigidity. All umbilical's include a 316 basket weave cable stocking to aid in heaving to deck. Bespoke lengths can be supplied. We also offer installation by our highly experienced team of engineers.

• Body - 316 Stainless Steel
• Dust Cap - 316 Stainless Steel
• Ferrules - Full Ceramic PC Singlemode
• Fibre - 9/125μm Multimode
• Alignment Sleeves - Phosphor Bronze "C" Type
• Bump Cap - Hard Rubber

Manufactured in The United Kingdom
